STS Prepaid Solution - Welle Digital Technology Co., Ltd.

Introduction

The STS (Standard Transfer Specification) prepaid solution is based on the international IEC 62055-41/51 standard. It enables cardless recharging through a 20-digit encrypted Token code. Users purchase water via electronic payment (such as mobile payment or online banking), receive a Token code, and input it into the meter terminal. The meter decrypts and verifies the Token before updating the balance and opening the valve. The STS protocol ensures secure data transmission and supports multiple communication methods (LoRa, Bluetooth, infrared), making it suitable for complex network environments.

Application Scenario

Multi-Vendor Environments: standardized protocol ensures compatibility across different meter brands
Areas with Widespread E-Payment: users prefer self-service mobile payments without the need for physical cards
High-Security Applications: suitable for commercial complexes and industrial parks, ensuring data integrity

Component

STS Prepaid Meter: supports Token decryption and valve control
Customer Interface Unit (CIU): used for inputting Token codes (e.g., Bluetooth keyboards, infrared devices)
Water Sales Management Platform: generates encrypted Token codes and integrates with payment gateways and user accounts
Communication Modules: LoRa, NB-IoT, Bluetooth, and other multi-mode options to suit different networks

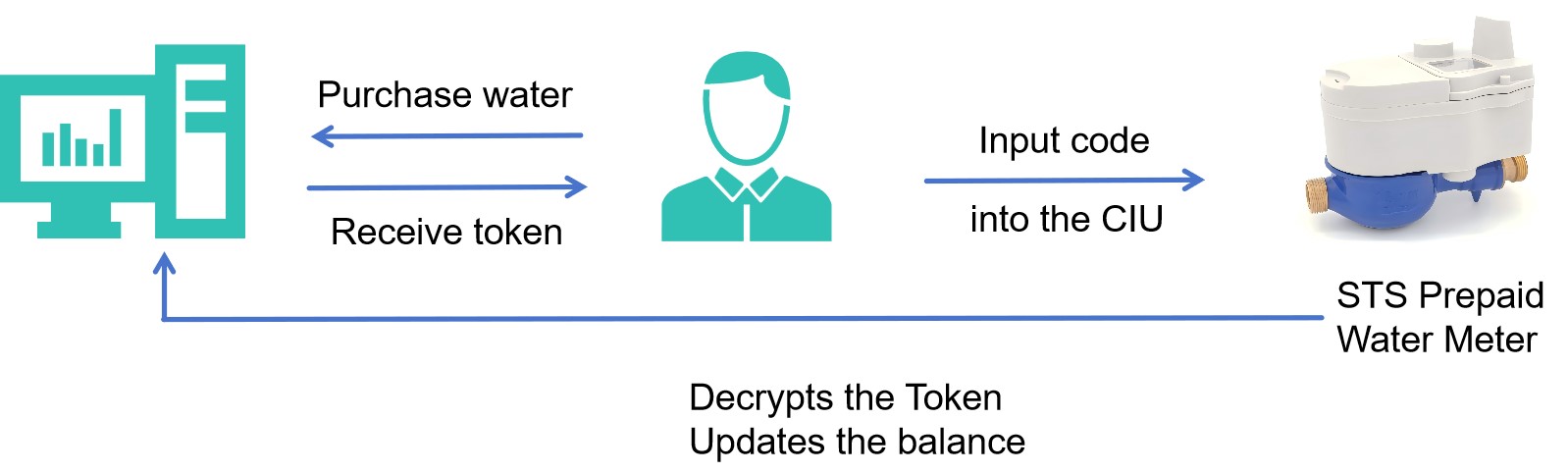

Work Process

Managers set user account information in software
Users recharge at the water vending office
To provide operator meter ID number (ID number printed on the water meter)
Tell the operator how much you want to buy and prepay
On the receipt, you can get a printed TOKEN "20 (Digits)"
Input 20 digits TOKEN into CIU, then you can continue use the water

Advantages

Cardless operation enhances user experience
High security with encryption to prevent tampering
Supports multiple payment methods for convenient recharging
Flexible deployment for urban and rural network conditions
