RF card water meter

Brand: Welle

Origin: China

Delivery time: 30 days upon confirmation

Service: OEM/ODM

Send Inquiry

Introduction

An RF card water meter is a smart water meter that uses radio frequency (RF) technology for wireless data transmission. It enables remote monitoring of water usage, prepaid or postpaid billing, and supports contactless recharging via an RF card. This technology improves accuracy, convenience, and efficiency in water management for residential, commercial, and industrial applications.

Features

1.Mechanical and electrical separation facilitates installation and maintenance

2.The liquid crystal display is synchronized with the mechanical part

3.Timing of valve rotation ensures flexibility

4.Applicable to low-density meter metering scenarios

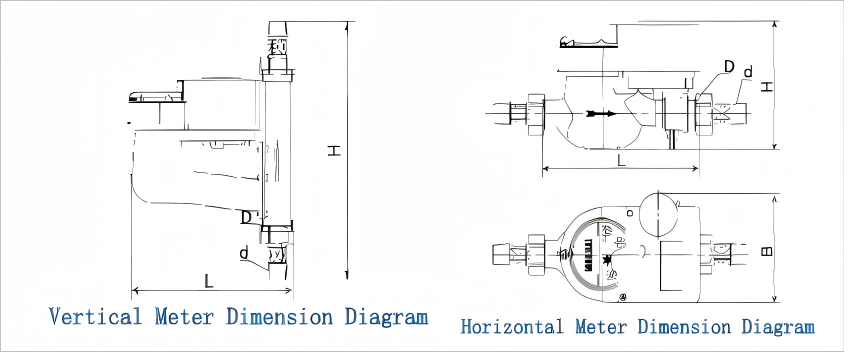

Dimension

Horizontal		DN15	DN20	DN25
L	mm	165	195	225
B		104.5	104.5	105.5
H		123.7	125.2	130.7
Connection Method	d	R1/2	R3/4	R1
Connection Method	D	G3/4B	G1B	G1 1/4B
Weight	Kg	1.75	1.95	2.5
Vertical		DN15	DN20	DN25
L	mm	182.5	188.5	212.7
B		104.5	104.5	105.5
H		261	271	297
Connection Method	d	R1/2	R3/4	R1
Connection Method	D	G3/4B	G1B	G1 14B
Weight	Kg	2.4	3.0	3.3

Performance parameter

Standby Current (Power Consumption)	<7uA (dormancy)	Temperature class	T30
Data Acquisition Method	Reluctance sensing	Pressure rating	MAP16
Operating Voltage	2.8~3.6V	Sensitivity level of flow field	U0/D0
Electromagnetic Environment Classification	E2	Environmental grade	O Level
Storage Environment	Ambient temperature -25℃~55℃，Relative humidity≤85%

Flow parameter

Caliber (DN)	Q₃/Q₁	Overload flow Q₄	Service flow Q₃	Demarcation flow Q₂	Minimum flow Q₁	Minimum reading	Maximum reading
		m³/h		L/h		m³
15	160	3.125	2.5	25.0	15.6	0.00005	99999
	125			32.0	20.0
	100			40.0	25.0
20	160	5	4.0	40.0	25.0
	125			51.2	32.0
	100			64.0	40.0
25	160	7.875	6.3	63.0	39.4
	125			80.6	50.4
	100			100.8	63.0
Maximum allowable error: low zone (Q1<Q<Q2) maximum allowable error is ±5%; The maximum allowable error for high zone (Q2≤Q≤Q4,) is ±2%

Q. What kind of certification do you have?
- A. CE certificate, MID certificate.

Q. How to request a quotation from Welle Digital?
- A. Simply call or send us E-mail with your purchase request. If detail requirements (like the type, size, weight, package and so on) can be shared will be better for quick quotation.
