Multi-Jet Wet Type Residential Water Meter

Brand: Welle

Origin: China

Delivery time: 30 days upon confirmation

Sevice: OEM/ODM

Send Inquiry
Features

  Introduction


This is impeller (turbine) water meter with wet type register for residential application with sizes from DN15 to DN50 and meets to the requirements of Directive 2004/22/EC on measuring instruments and of European Standard EN14154.


  Features


  1. Corrosion Resistance: All the materials selected by resistance to corrosion

  2. High Stability: The impeller is the only moving parts in contact with water permitting the most reliable

  3. Extra Inlet Filter: The filter at the inlet of the meter body permits cleaning it without breaking the metro logical seal

  4. Non Return Valve to avoid the reserve flow Rate as option

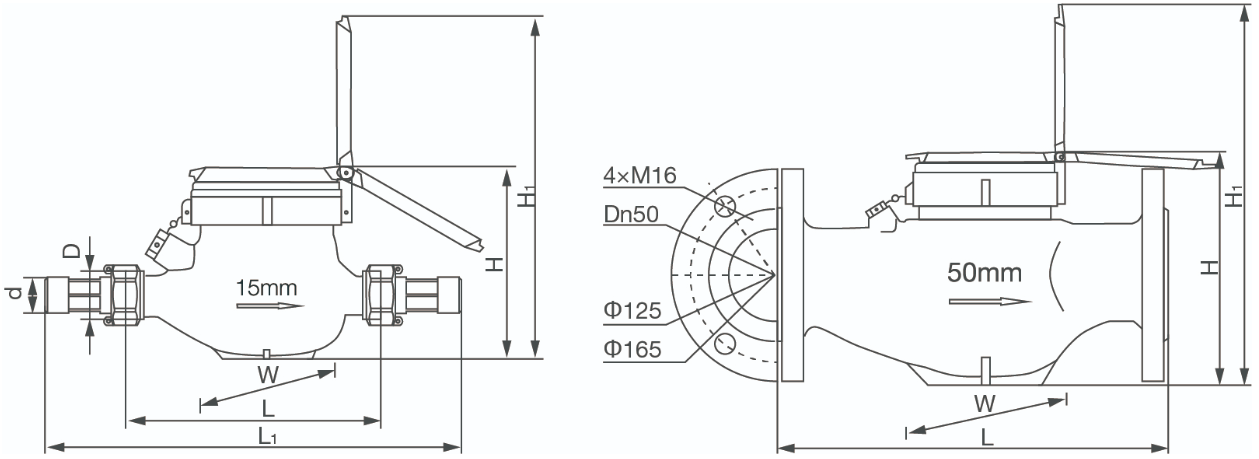

  Dimension

Size
(mm)

DN15

DN20

DN25

DN32

DN40

DN50

DN50-Flange

L

165

190

260

260

300

300

300

L1

259

294

380

384

384

448

/

D

G3/4B

G1B

G1 1/4B

G1 1/2B

G1 1/2B

G2 1/2B

/

d

R1/2

R3/4

R1

R1-1/4

R1-1/2

R2

/

H

107.5

107.5

117.5

117.5

141.5

177

184

H1

191

191

206.5

206.5

256.5

292

299

W

94

94

98

98

122

145

165

L1 : the total length with connection and the gasket without compression.

Option: Different length ofthe Water Meter under different size.


  Technical Specification

DN

  mm

15

   20

25

    32

    40

50

R

Q3/Q1

160

160

Q4

m³/h

3.125

5

7.875

12.5

20

31.25

Q3

m³/h

2.5

4

6.3

10

16

25

Q2

l/h

25

40

63

100

160

250

Q1

l/h

15.625

25

39.375

62.5

100

156.25

Max reading

m3

99999.9999

999999.9999

Min reading

Liter

0.05

Pressure loss

Δp

Δp<63

Max Pressure

MAP

MAP16

Max Temperate

T30/T50

For different Q3 and R, Please contact us.
